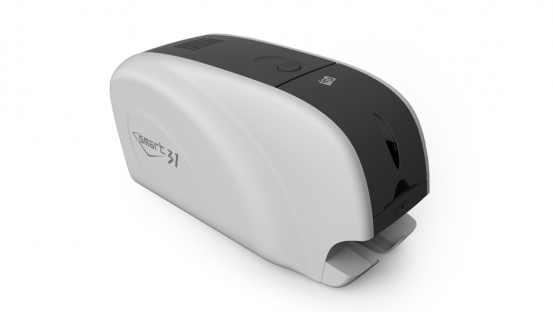

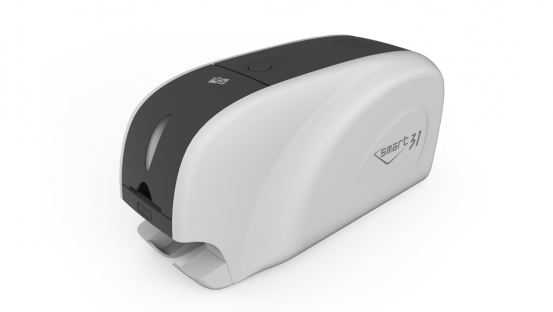

SMART-31S

Overview

Why use a SMART-31S?

SMART-31 Series value class ID card printer for everyone which is a perfect solution for printing ID cards at a low budget.

SMART-31S Rewritable printer is an ideal solution for printing temporary information on ID cards.
  • Color & Mono Single Sided Printing
  • 300, 600 & 1200dpi with Edge-to-Edge Printing
  • LED Buttons for Front Operation
  • Low Cost Security with UV Printing
  • Installable Encoders: MS, Contact & Contactless
Features
  • Color & Mono Single Sided Printing
  • Print Speed: Max. 23 sec./card (YMCKO)
  • 300, 600 & 1200dpi with Edge-to-Edge Printing
  • LED Buttons for Front Operation
  • Low Cost Security with UV Printing
  • Installable Encoders: MS, Contact & Contactless
  • Upgradable Modules: Flipper & Ethernet
Specifications

Printing

Print Type

Dye Sublimation

Print Area

Edge to Edge

Resolution

300 dpi

Dual Side Printing

Option (with flipper)

Card

Card Feeding

Automatic

Card Size

ISO CR80 (54mm x 86mm / 2.12″ x 3.38″)

Card Tickhness

0.38mm (15mil), 0.76mm (30mil)

Card Type

PVC, Composite PVC, PET

Print Speed

Monochrome

5sec./card (720 cards/hour)

YMCKO

Max. 23 sec./card (156 cards/hour)

Capacity

Input Hopper

80 cards

Output Hopper

25 cards

System

Memory

64MB RAM

Control Panel

LED Button

Supported Platform

Microsoft Windows 7/ 8 /10, Mac OS, Linux

Communication

USB, Ethernet (Option)

Power Supply

DC 24V

Power Consumption (Max)

48W

Temperature / Humidity

15~35C / 35~70%

Dimensions

Dimensions (WxLxH)

172mm x 377mm x 190mm

Weight

3.4kg / 7.5lbs

Encoding Options

Magnetic

ISO 7811 (Track I, II, III Read/Write), HiCo/LoCo, JIS II

Contact Smart Card

ISO 7816 (ID-1)

Contactless Smart Card

MIFARE, ISO 14443 (Type A/B)

Internal & External

ISO 15693, DESFIRE, iClass

Certifications

CB, CE, FCC, KC, C-tick
